Our rotative parts washers are designed for optimal performance, providing fast and efficient cleaning for parts of all sizes.
Whether you’re working with medium-sized components or larger, more complex parts, our washers offer flexibility, durability, and precision.
These machines combine advanced technology with user-friendly features, ensuring your cleaning processes are streamlined and cost-effective.
Perfect for industries that require high-volume, high-quality cleaning, our rotative washers are built to last and maximize your workshop’s productivity.

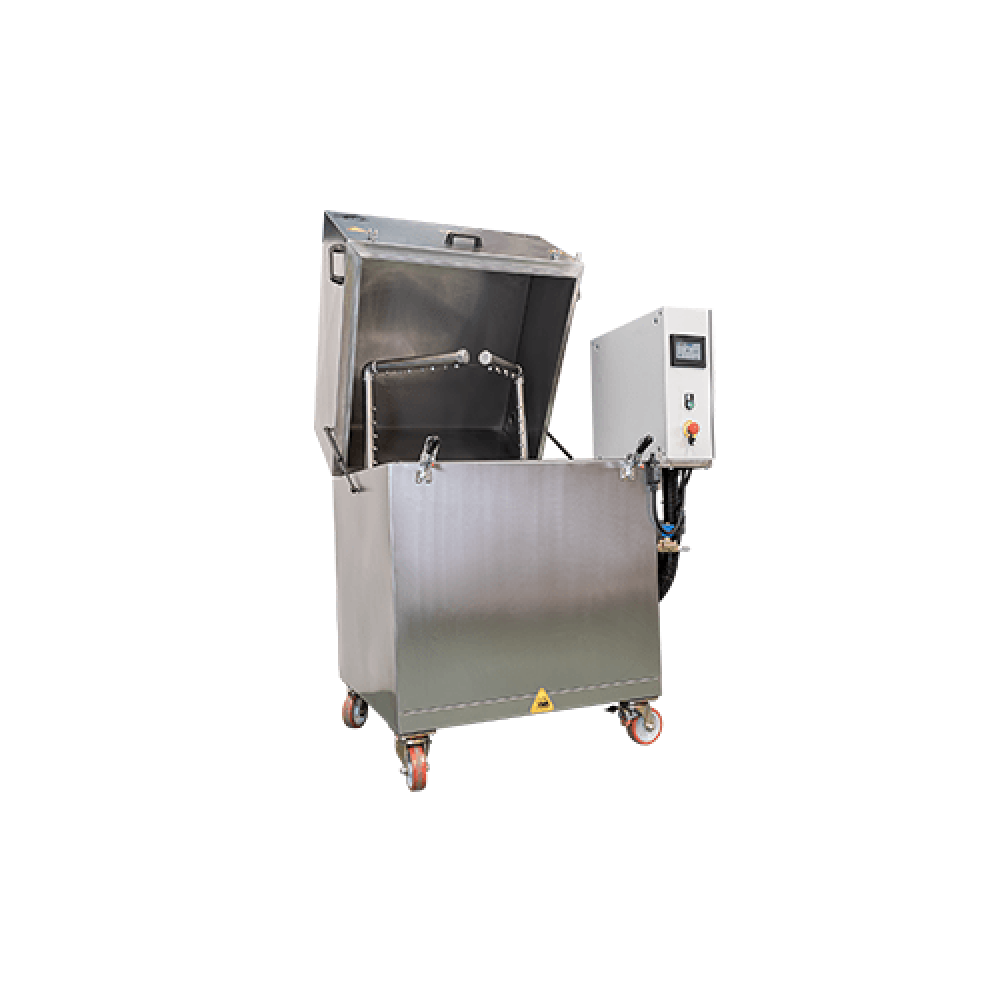

The TITAN rotative parts washers are specifically designed to provide efficient and automatic cleaning for parts of various sizes. These washers are ideal for industries that require high-quality cleaning results and fast turnaround times. With an intuitive touchscreen interface, managing cleaning cycles has never been easier. You can easily control:
Weekly Heating Program: Set the start and end times for heating, allowing for automatic daily operation.
Customizable Cleaning Programs: Choose the desired temperature and cleaning duration to suit the specific needs of your parts.
Real-Time Alerts and Notifications: Get notified of any issues, such as water shortages or system errors, to keep your operation running smoothly.
The TITAN models are equipped with a disk degreaser to maintain the effectiveness of the cleaning process, while the tanks are insulated to optimize energy consumption. This makes the TITAN washer an energy-efficient and reliable solution for deep cleaning.
Designed for industrial use, the TITAN series provides a thorough and efficient cleaning process, making it the ideal choice for businesses looking to maintain high cleaning standards.
Easy-to-Use Touchscreen Control: Manage cleaning cycles and settings with ease.
Disk Degreaser: Keeps cleaning water effective longer by removing oil and contaminants.
Dual-Pipe System: Enhances water circulation and filtration for better performance.
Under-Basket Filtration: Collects chips and debris for cleaner water and longer cycle times.
Mobile Design: Comes with wheels for easy relocation within the workspace.
Automatic Water Feeding & Level Sensors: Maintains optimal water levels for continuous operation.
Steam Extractor: Ensures safe operation by removing excess steam.
Safety Door Lock: Prevents accidental opening during operation.
Insulated Tanks: Conserve energy by maintaining consistent water temperatures.
Optional Pneumatic Door and Loading Cart: Available on TITAN 1200 for more efficient handling of parts.
| Technical data / Model | TITAN 800 | TITAN 1000 | TITAN 1200 |
|---|---|---|---|
Basket diameter | 750 mm | 950 mm | 1150 mm |
Washing height | 450 mm | 500 mm | 600 mm |
Tank capacity | 115 l | 185 l | 260 l |
Power supply | 400V – 3HP – 50HZ | ||
Water pump | 1×1.2 HP | ||
Heating power | 2 x4.5 KW | 2 x7.5 KW | |
Loading capacity | 150 kg | 300 kg | 400 kg |
Temperature regulation | 0-80 ºC | ||
Steam extractor | Not Included | Included | |
Oil skimmer | Included | ||
Automatic water feeding | Included | ||
Touch screen | Included | ||

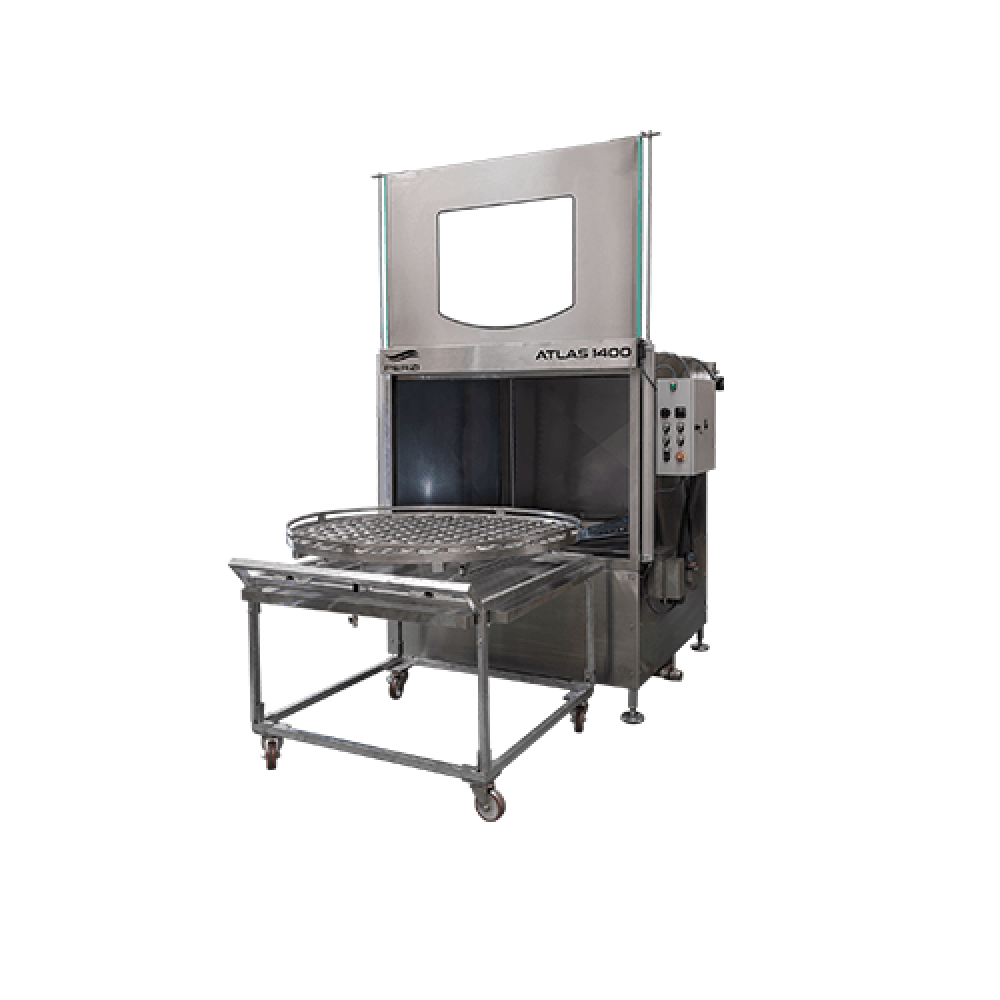

The ATLAS models are advanced rotative parts washers designed specifically for the degreasing of medium and large-sized components.
These washers are perfect for businesses that require a high-performance, automated cleaning solution for parts in demanding industries.
The ATLAS series offers professional-level cleaning with a fully automatic process, making it easier and faster to achieve optimal results. Whether you need to clean heavy-duty parts or smaller components, these machines can handle a wide range of cleaning tasks efficiently.
Touchscreen Process Control: Easily manage and monitor your cleaning cycles with the intuitive control panel.
Disk Degreaser: Helps maintain the effectiveness of the cleaning water for longer by removing oil and contaminants.
Dual-Pipe System: Ensures optimal water circulation for better washing performance.
Under-Basket Filtration Panels: Efficiently collect chips and debris to maintain clean water throughout the cleaning process.
Automatic Water Feeding and Level Sensors: Keeps the water levels consistent, preventing operational interruptions.
Insulated Tank: Retains heat to enhance energy efficiency.
Safety Lock for Door Opening: Ensures safe operation by preventing accidental opening during the washing process.
Steam Extractor: Effectively removes steam, providing a safer working environment.
Loading Cart: Facilitates easy and efficient loading and unloading of parts.
Precision Filtration System: Enhances the filtration process, ensuring cleaner washing water.
Hot Air Drying: For drying parts after cleaning to improve efficiency.
Draining Pump: Simplifies the process of emptying the washing tank for easy maintenance.
The ATLAS series is designed to provide maximum efficiency, making it an ideal solution for industries that demand quick, effective, and reliable cleaning of parts.
| Technical data / Model | ATLAS 1200 | ATLAS 1400 | ATLAS 1600 | ATLAS 1800 | ATLAS 2000 |
|---|---|---|---|---|---|
Basket diameter | 1160 mm | 1360 mm | 1560 mm | 1760 mm | 1960 mm |
Washing height | 650 mm | 750 mm | 750 mm | 900 mm | 900 mm |
Tank capacity | 250 l | 350 l | 470 l | 610 l | 770 l |
Power supply | 400V – 3HP – 50HZ | ||||
Air feeding | 7 – 8 Bar | ||||
Washing pump | 1x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 3 x 1.2 HP |
Heating power | 2 x 7.5 KW | 2 x 10 KW | |||
Loading capacity | 450 kg | 500 kg | 700 kg | 800 kg | 900 kg |
Temperature regulation | 0-80 ºC | ||||
Steam extractor | Included | ||||
Oil skimmer | Included | ||||
Automatic water feeding | Included | ||||
Touch screen | Included | ||||

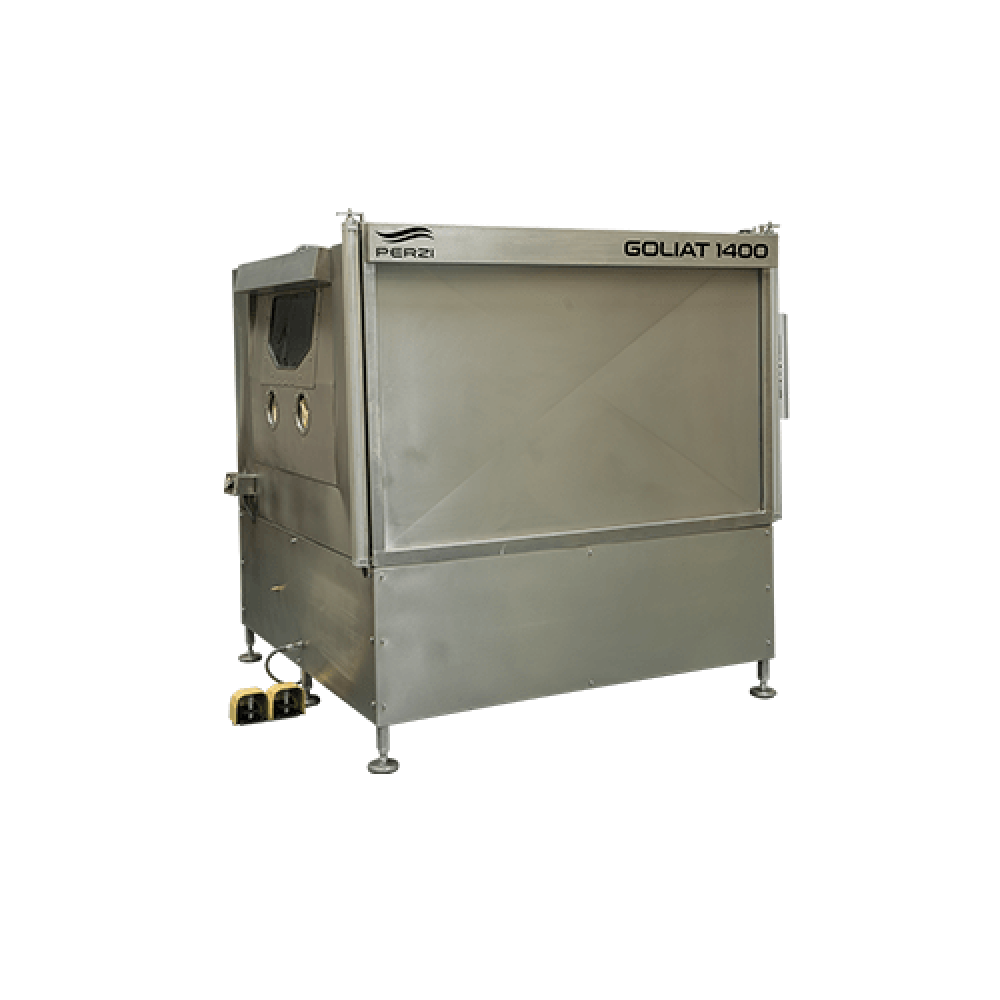

The GOLIAT models are versatile washers offering both rotative and manual cleaning options, tailored for comprehensive degreasing of components of various sizes. These machines combine automatic precision with manual control, ensuring flexibility to meet diverse cleaning needs in professional environments.
| Technical data / Model | GOLIAT 1200 | GOLIAT 1400 | GOLIAT 1600 | GOLIAT 1800 | GOLIAT 2000 |
|---|---|---|---|---|---|
Basket diameter | 1160 mm | 1360 mm | 1560 mm | 1760 mm | 1960 mm |
Washing height | 650 mm | 750 mm | 750 mm | 900 mm | 900 mm |
Tank capacity | 250 l | 350 l | 470 l | 610 l | 770 l |
Power supply | 400V – 3HP – 50HZ | ||||
Air feeding | 7 – 8 Bar | ||||
Washing pump | 1x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 3 x 1.2 HP |
Manual washing pump | 1 x 150 Bar | ||||
Heating power | 2 x 7.5 KW | 2 x 10 KW | |||
Loading capacity | 450 kg | 500 kg | 700 kg | 800 kg | 900 kg |
Temperature regulation | 0-80 ºC | ||||
Steam extractor | Included | ||||
Oil skimmer | Included | ||||
Automatic water feeding | Included | ||||
Touch screen | Included | ||||
The NOVA models are premium rotative parts washers designed for comprehensive cleaning, rinsing, and drying processes.
Built for efficiency and precision, these machines are ideal for handling medium to large components requiring thorough degreasing and post-cleaning care in industrial environments.
Three-Step Cleaning Process: Wash, rinse, and dry parts seamlessly in a single cycle, ensuring a spotless finish.
Touchscreen Control Panel: Simplifies the setup of cleaning programs, including temperature control, cycle timing, and process management.
Integrated Filtration System: Enhances water efficiency with under-basket filters, dual-line pipes, and an oil skimmer to maintain solution quality.
Insulated Tanks: Keeps water at optimal temperatures for better cleaning results while conserving energy.
Safety Enhancements: Features door safety locks and a vapor extraction system to comply with industry safety standards.
High-Precision Filtration: Removes fine particles for an even cleaner washing process.
Hot Air Drying System: Delivers faster drying and prevents part corrosion.
Automated Tank Emptying: Simplifies maintenance with an optional drainage pump.
With its advanced features and robust construction, the NOVA series delivers top-tier cleaning performance for workshops and industries that demand excellence and reliability.
| Technical data / Model | NOVA 1200 | NOVA 1400 | NOVA 1600 | NOVA 1800 | NOVA 2000 |
|---|---|---|---|---|---|
Basket diameter | 1160 mm | 1360 mm | 1560 mm | 1760 mm | 1960 mm |
Washing height | 650 mm | 750 mm | 750 mm | 900 mm | 900 mm |
Tank capacity | 230 l | 310 l | 400 l | 490 l | 600 l |
Rinsing tank capacity | 150 l | 210 l | 280 l | 360 l | 450 l |
Power supply | 400V – 3HP – 50HZ | ||||
Air feeding | 7 – 8 Bar | ||||
Washing pump | 1x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 2 x 1.2 HP | 3 x 1.2 HP |
Rinsing pump | 1 x 1.2 HP | 2 x 1.2 HP | |||
Manual washing pump | 1 x 150 Bar | ||||
Water Heating power | 2 x 7.5 KW | 2 x 10 KW | |||
Loading capacity | 450 kg | 500 kg | 700 kg | 800 kg | 900 kg |
Temperature regulation | 0-80 ºC | ||||
Steam extractor | Included | ||||
Oil skimmer | Included | ||||
Automatic water feeding | Included | ||||
Touch screen | Included | ||||
